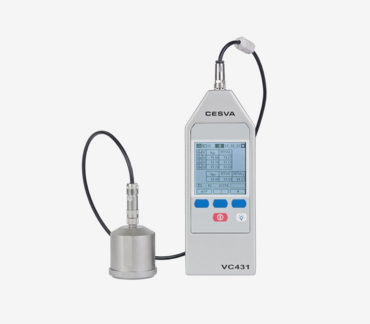

The CESVA VC431 is a triaxial vibrometer (in accordance with the regulation ISO 804) and an ideal instrument for field vibration measurements to assess risks arising from the exposure of workers to mechanical vibration.
The hand-held instrument is ideally suited to the field assessment of risks related to hand-arm vibration (HA) due to it’s compact size and low weight, and ease of use.
The vibrometer has great storage capacity and saves the time history of all measurements. The vibrometer has USB connectivity and power.
The VC431 has a user-friendly iconographic display which simultaneously measures vibration in three axes and displays all relevant parameters for hand arm vibration exposure assessment.
Figure 1: Results screen of the vibrometer for HA data.
The functions available for WBV measurements are shown in the following table:
| Function | Description of WHOLE BODY (WBV) Mode functions | ||||||||
|
|
|||||||||
| ahx | Rms value of acceleration in the x axis with Wh weighting | ||||||||
| ahy |
|
||||||||
| ahz |
|
||||||||
| ahv | Total value of acceleration | ||||||||
| A(8) | Daily exposure to vibration | ||||||||
| A(8)p | Projected daily exposure to vibration | ||||||||
| tp | Projection time (programmable) | ||||||||
| tn | Measurement time | ||||||||
The tri-axial accelerometer (AC031) is fitted to the handle of the work equipment using the optional handle adaptor
The CESVA Capture Studio software (included with the vibrometer) enables the measurements conducted with the VC431 to be easily downloaded via USB and the results analyzed quickly and simply.
Standards
ISO 2631-2
EN ISO 8041:2005 Vibrometer
ISO 8041:2005 Cor1:2007 Vibrometer
OIML R 103:1992 Vibrometer
